Introduction:

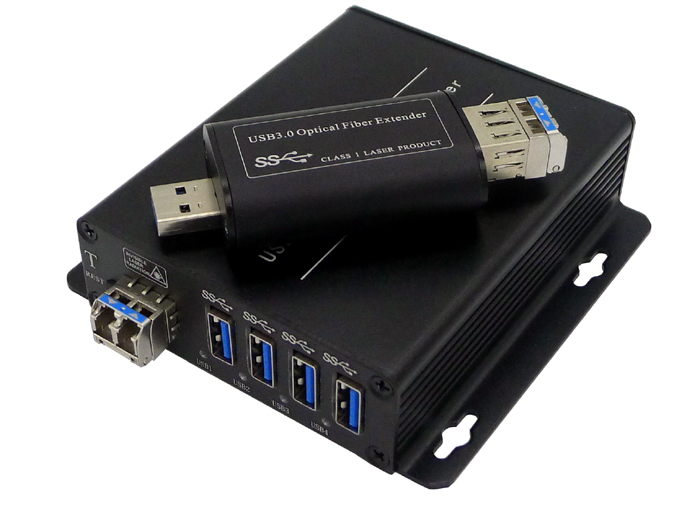

USB 3.0 To Fiber Hub, BY-USB-412 includes a transmitter（client-side） and a receiver（host-side), which can extend the Super Speed USB 3.0 to a remote location over 2 or 1 core fiber cable,

max distance 250 Meters (820 FT) (SM or MM fiber cable), also can split 1 USB 3.0 interface to 4 USB3.0 interfaces.

Features:

1). Supports Kinect devices and Xbox

2). Max extension distance 250 Meters (SM or MM fiber cable).

3). Full Duplex LC fiber connector, pure hardware design, no driver needed, compatible with all operation systems, support hot plug and play

4). Support USB 3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle

5). Not backwards compatible with USB 2.0 and USB 1.1

Application:

1.Industrial video transmission

2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).

3.HD video surveillance system.

4.High - speed data acquisition system like FMC & TFM.

5.Remote storage.

6.Digital signage and TV wall.

7.Industrial printer system.

8.Kinect devices and Xbox.

Specification:

Optical

Optical Connector: 2 x LC, 1 x LC Optional

Wave length:1310nm

Support Fiber types:   50/125μm(MMF), 62.5/125μm(MMF),   9/125μm(SMF)

Physical

Size (L× W ×H):104mm x104mm x28mm

Case:Aluminum

Color:Black

N.W.:0.5Kg

Power Voltage:5~12V DC

sender power consumption:<5W

receiver power consumption:<2W

Environment

Working temperature:0℃-50℃

Storage temperature:-40-85℃

Humidity:0-95% (non-condensing)

Diagram:

Sell on Amazon, worldwide delivery:

Part   number	Links on   amazon.com	QR codes of this amazon link
BY-USB-412DF     (2 core SM/MM Fiber)	https://www.amazon.com/dp/B079GSNFBY
BY-USB-412SF     (1 core SM/MM Fiber)	https://www.amazon.com/dp/B07C74RF7P
